| Model No. | NST-IPM3294-BL |
|---|---|

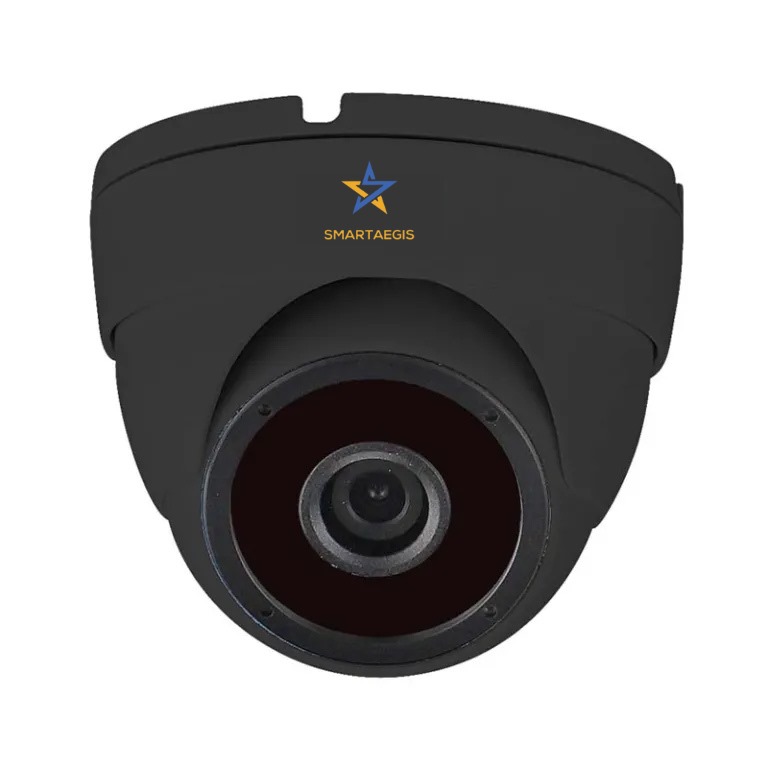

| Camera Type | Fixed Lens Dome IP Camera |
| System | Embedded RTOS design |
| Effective Pixels | 4.0 Megapixels |
| Resolution | Main: 2560×1440@25fps Sub: 1280×720@25fps, 704×576@25fps |
| Image Sensor | 1/2.8" Sony IMX415 CMOS Sensor |
| Chipset | Mstar SSC328Q |
| Min. Illumination | Color: 0.01Lux/F1.2 B/W: 0.0001Lux/F1.2 |
| Adjustable Parameters | DWDR, BLC, DNR, AE, AGC, D&N, Mirror, Flip |
| Video Compression | H.265/H.264 Main profile |
| Stream | Dual stream, AVI format |
| Bit Rate | 0.1M ~ 8Mbps adjustable |
| Frame Rates | 1 ~ 30fps adjustable |
| Audio I/O | 1ch input (microphone), 1ch output (speaker) - optional |
| Audio Compression | G.711, two-way audio intercom, synchronized audio/video |
| Alarm Types | Motion Detection, Video Blind, Video Loss |
| Web Access | IE, Safari, Chrome, Firefox (remote config) |
| Mobile Monitoring | iPhone, Android |
| CMS Software | Uniform CMS (multi-device management) |
| Cloud | www.enster.com, MYEYE platform, SDK available |
| Network Protocols | RTSP, FTP, PPPOE, DHCP, DDNS, NTP, UPnP, SMTP |
| ONVIF | Supported (ONVIF 2.4) |
| POE | Optional |
| Languages | 20 languages incl. English, French, German, Spanish, Chinese, etc. |
| IR Cut Filter | Double light switch IR-CUT filter |
| Lens | Fixed 4mm/F1.0 |
| Aux Luminary | N/A |
| Infrared | Wavelength: N/A Distance: N/A |
| Waterproof | IP66 |
| Connectors | 1× DC, 1× RJ45 (10/100M) |
| Power Supply | DC12V / PoE (802.3af/820.3at) |
| Power Consumption | < 200mA |
| Working Environment | -10°C~+60°C, 10%~90% RH (Heater optional for <-20°C) |
| Weight | 0.6kg |
