Product Details
Turnstile

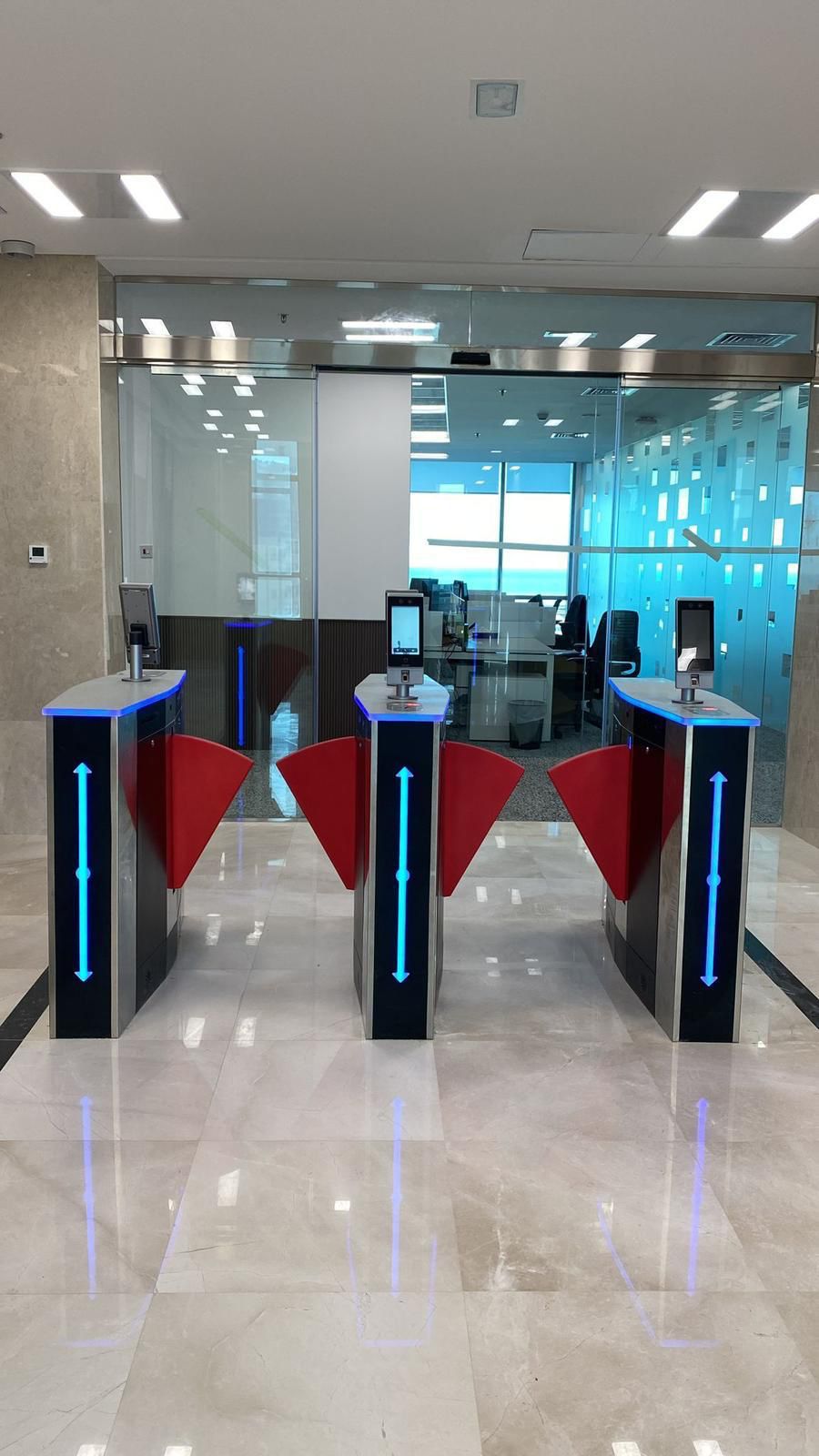

304 Stainless Steel with Customized Dimension Swing Flap Turnstile Flap Barrier Gate Security Gate This type of turnstile features a flap gate that revolves around a fixed post to avoid tailgating of users. it is fast, highly secure and offers remarkable integration opportunities with advanced access control systems. Plus, it is ideal for internal and external applications. Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life
Download Datasheet
Key Features of the Smartaegis-WT2053 Series
Heavy Duty Gate Arm Barrier
- Non-Isokinetic Double Dead Point Four-Link Mechanism
- Ensures smooth, stable arm movement.
- Group Spring Balancing
- Reduces motor load and extends lifespan
- Hall Limit Sensors
- Combined with structural limits for precise positioning.
- Magnet-Based Limit Adjustment
- Non-contact horizontal/vertical calibration.
- CNC-Processed Drive Parts
- High-precision components; no cast parts.
- Fire Protection Interfaces
- Built-in circuits for emergency shutdown.
- CNC-Processed Drive Parts
- High-precision components; no cast parts.
- Infrared/Pressure Wave Radars
- Obstacle detection for automatic stoppage.
- Waterproof & Moisture-Proof Design
- Suitable for harsh environments.
Structural Design
Head: Houses motor, gearbox, and Hall limit sensors.
Cam Door: Reinforced door for secure alignment.
Chassis: Constructed from 2.0mm cold steel; critical parts use ≥4.0mm steel for durability.
Barrier Arm Rest Stand: Heavy-duty stand included for stable arm placement in the resting position. Made of galvanized steel to resist corrosion.
Lightweight alloy with corrosion-resistant coating; adjustable length (3–6 meters).
Technical Specifications
| Features | Specification | |
|---|---|---|
| Protection Level | IP64 (dust-tight and water-resistant) | |
| Voltage | 220V ±10% or 110V ±10%, 50/60Hz | |
| Motor | 220V/9W pure copper motor with high-precision turbine gearbox | |
| Remote Control Distance | ≥10 meters | |
| Net Weight | 80 kg | |
| Arm Speed Adjustment | 1.5s, 3.0s, 4.5s, or 6.0s (4 preset speeds) | |
| Boom Length | Adjustable from 3 meters to 6 meters (customizable during installation) | |
| Chassis Dimensions | 340 × 250 × 1030 mm | |
| Operating Temperature | -30°C to +80°C | |
| Relative Humidity | < 90% |
