Product Details

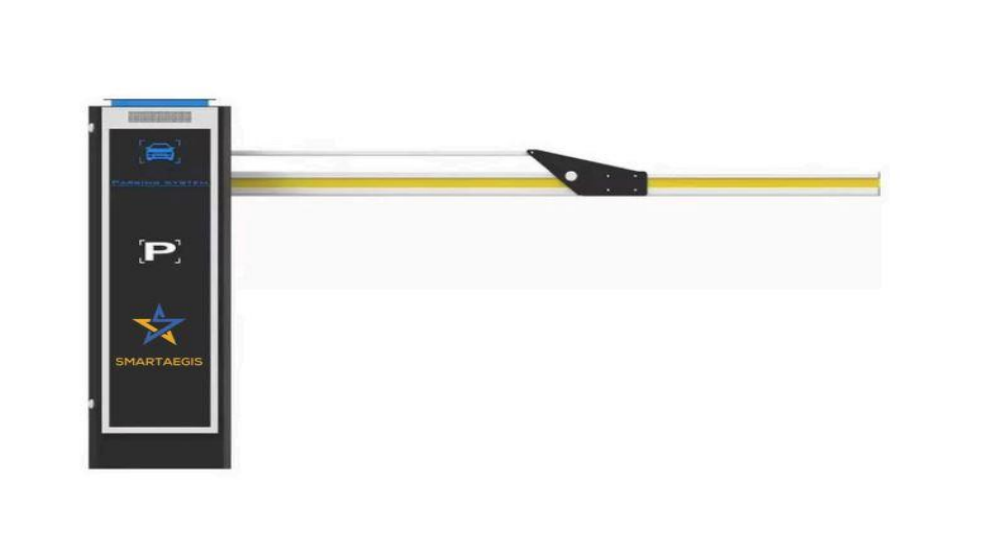

ZT-204-Gate-Arm-Barrier


Smartaegis Parking barrier design is mainly for parking lot of large traffic flow (such as large office building lot, public parking lot and shopping mall etc.) This system is suitable for both temporary and monthly user parking lot. It adopts paper tickets for temporary user and it serves as the evidence of temporary user for in and out. Low system operating costs, large storage of temporary paper tickets, and visible vehicle enter time and plate numbers is the features of the barcode type parking system. Temporary user enters parking lot with the ticket, give the ticket to the security person for scanning when exiting, compute displays the fees and after payment, released by the security personnel.


Download Datasheet - ZT-204 Gate Arm Barrier

Product Parameter

  • Chassis size: 340mm×270mm×1090mm
  • Working voltage: 220V
  • Remote control distance: ≤30m
  • Motor specification: 90W
  • Landing stick time: fast 1.5s/medium speed 3s
  • Protection class: IP44
  • Ambient temperature: -30℃~80℃;
  • Limit length of brake lever: 4.5 meters at medium speed, 6 meters at slow speed, standard use of telescopic rubber bar With the support rod (Heri pure copper motor two-stage speed change), the 24-hour operation is not hot. , two remote controls. With 100*45 brake rod or 100*50 telescopic rod, with 100*50 telescopic rod, or golden oval rod, door panel black tempered glass, blue backlight. Dome light blue back
  • Support counting function, support relay signal and high-level signal input, support landing limit signal output, small angle shielding ground sense
