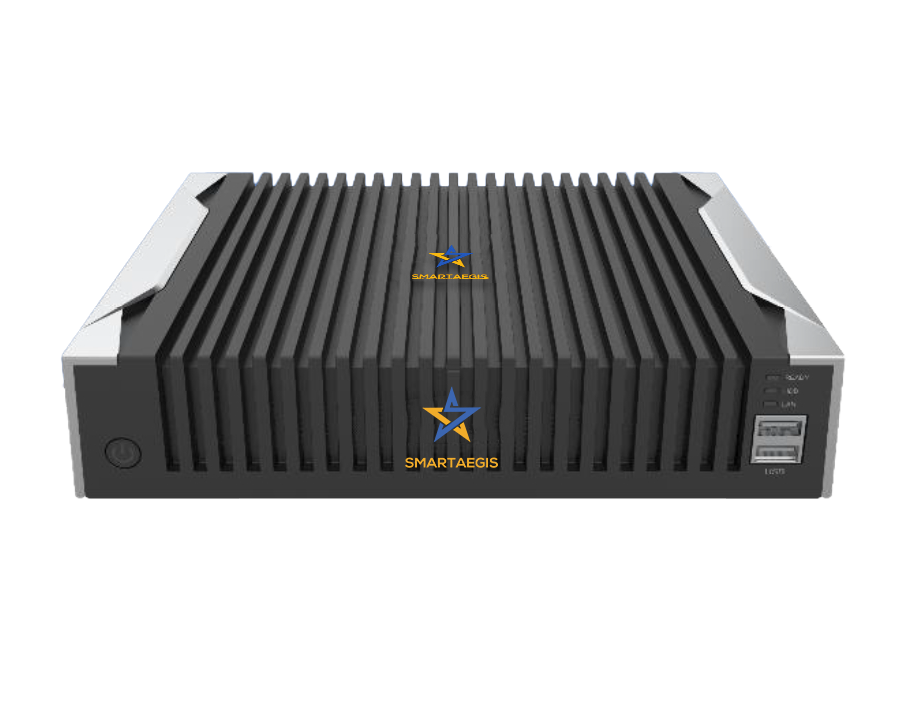

SMARTAEGIS SMART AI BOX B4H

Smartaegis AI Box (B4H series) provides the hardware processing capability of multi-AI algorithms, widely used in building, community, campus and etc. Combining with AI chip + AI framework + AI algorithms, it supports multi-channel AI analysis. When it comes to smart solutions, it can support face recognition access control, person-vehicle management, perimeter protection working with Pangu platform or Hongtu server and etc.

Download Datasheet - Smartaegis AI Box

Key Features

Built in Multi AI Algorithm
Built in FR, Structured, perimeter, Production and more than 30 AI Algorithm, Applied in different scenarios

High Performance AI Meg-engine
AI Computing, Over 28.8T, 16ch AI Video stream, 300k Face database

Flexible Integration
Rich REST API and SDK make integration very easy and friendly

Convenient Deployment
Smart Design supporting desktop and wall mounting. Support RTSP standard protocol video stream for upgrade project

Technical Specifications

Model	SMART Cube-B4H04-311-N0	SMART Cube-B4H08-311-N0	SMART Cube-B4H16-311-N0
Chipset	Hisilicon 3516DV300
CPU	ARM Cortex-A7 dual-core 1.2GHz
Operating System	Linux
RAM	1GB DDR3
Flash Memory	8GB eMMC
LAN Ports	4 × 10/100M	8 × 10/100M	16 × 10/100M
USB Ports	1 × USB 2.0
Video Input	4 Channels	8 Channels	16 Channels
AI Algorithm	Face detection, human & vehicle classification, perimeter detection
Power Supply	DC 12V / 1A
Operating Temperature	-10°C ~ 55°C
Dimensions	120mm × 100mm × 30mm
Weight	0.4kg
