Specification

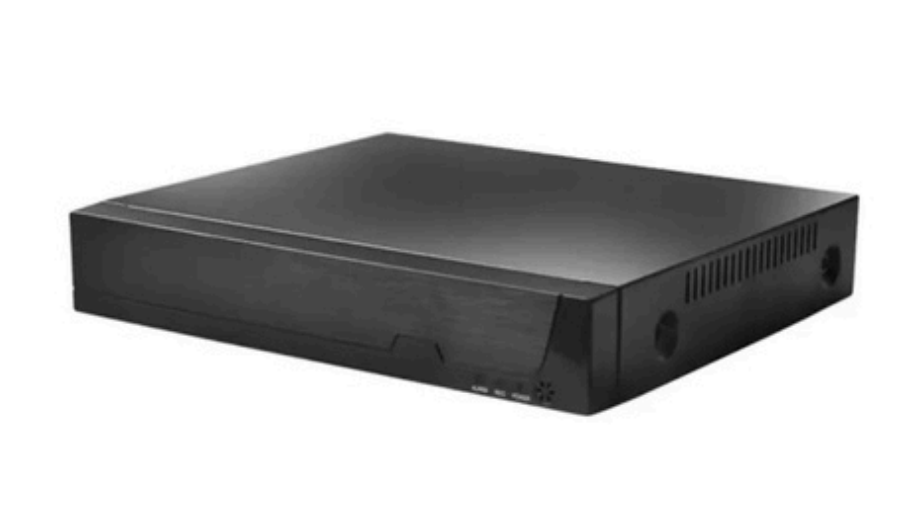

Model No. NVR-7516P-M
System Main processor NT
Operating system Embedded LINUX operating system
System resource Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operation interface 16-bit true color graphic menu operation interface, support mouse operation
Display screen 1/2/4/6/8/9/16
Video Video input (IP) 16*8MP/16*4K
Video standards PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
Video compression H.265/H.264
Display quality Max:4K
Playback quality 4K/5M/4M/3M/1080P
Decode 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1）
human shape / Face Depend on camera
Audio Audio compression G711A
intercom support
Record and playback Record mode Manual>Alarm>Dynamic Detection>Timing
Local playback 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1）
Search mode Search by Time/Calendar/Event/Channel/Face
Storage and back up Record Storage HDD 、 network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Interface Video output 1ch HDMI HD Output ,1CH VGA Output
Audio I/O 1/ 1（3.5mm）
Alarm I/O 0/0
Network interface 1*SFP Port, 2* 100M/1000M Adaptive Ethernet port,16 POE Output ports
USB interface 2*USB2.0 port
Hard disk 1*SATA (Up to 10TB for each disk)
other PTZ control Control PTZ device by network
ONVIF Available
Power supply DC 48V /5 A
Power Consumption <10W(Without HDD)
Work environment Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp
Dimension L440*W320*H45MM
Weight 2.2KG
